MATRIX103610 Large Scale Switch Matrix Test System

MATRIX103610 Large scale switch matrix

Matrix parameters

Matrix size: 10 * 36
Matrix type: full crossing
Matrix bandwidth: DC-10GHz
Insertion loss:

< 0.8dB@500M

< 1.3dB@2500M

< 1.7dB@6000M

< 2.3dB@8000M

< 2.7dB@10000M

Insertion loss consistency between all channels:

DC~2.5GHz ≤0.5

2.5GHz~4GHz ≤0.6

4GHz~6GHz ≤0.7

6GHz~10GHz ≤0.8

Isolation: >80dB
Standing wave ratio:

DC~1GHz ≤1.15 1GHz~2.5GHz ≤1.25

2.5GHz~10Ghz ≤1.35

Phase consistency:

40MHz～500MHz : ±0.5°

500MHz～1.0GHz：±1.0°

1.0GHz～2.5GHz：±2.5°

2.5GHz～4.0GHz：±4.0°

4.0GHz～10.0GHz：±10.0°

Switching speed: <50ms
Switching power: >2W
Switching life: 2000000
Control interface: Ethernet/serial port (RS232)/USB
Connector: SMA
Packaging form: standard 19 inch cabinet installation, 482m/18.98″wide * 532.5mm/20.96″(12U) high * 600mm/23.62″ deep,
System weight: about 40KG/48.18 pounds

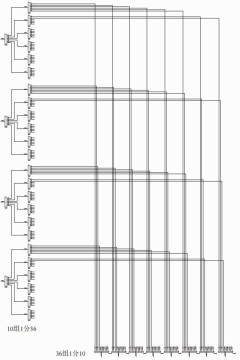

System schematic diagram

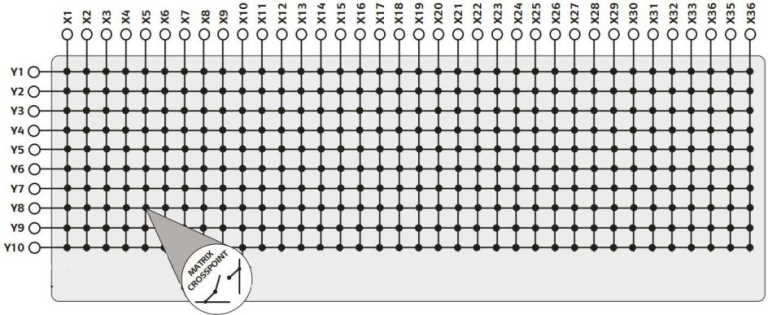

Matrix implementation mode

Matrix description

The scale of the matrix is 10 * 36, and the form is full crossing. It can realize arbitrary conduction of X axis and Y axis. However, due to the special structure of the microwave switch, it is impossible to achieve multi-point conduction on the same coordinate axis.

The matrix is controlled in the form of Ethernet, providing complete interface documents, and supporting multiple development environments, such as Labview, C/C++, etc.

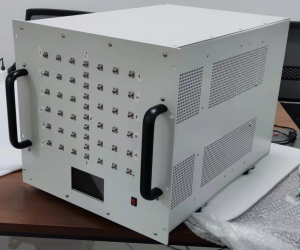

Schematic diagram of chassis

Ordering model

Product model: MATRIX103610

Note: This ordering model is only the host model, and does not include external wiring. If external wiring is required, it shall be purchased separately.

Operating environment/storage environment

Operating environment

Operating temperature: 0 ℃ —+65 ℃ / 32℉—149℉ Operating humidity: 0-90%, no condensation

Storage environment

Storage temperature: – 20 ℃ —+75 ℃ / -4℉—167℉

Storage humidity: 0-90%, no condensation
